36-inch Gas Cooktop with 5 Burners and EZ-2-Lift™ Hinged Cast-Iron Grates

Get dinner on the table fast thanks to a Fifth Burner for greater cooking flexibility.
This 5-burner gas cooktop with Edge-to-Edge Cast Iron Grates includes a SpeedHeat™ Burner
for a quick boil and a 5K BTU Simmer Burner for low, even heat. Clean up easily with
EZ-2-Lift™ Hinged Cast-Iron Grates and a smooth, porcelain-enameled surface that makes
cooktop spills easy to wipe up.

Key Features

• EZ-2-Lift™ Hinged Cast-Iron Grates: Industry-first hinged design lets you wipe underneath without removing heavy grates.
• SpeedHeat™ Burner: Generates high heat for rapid boiling and perfect searing.
• 5K BTU Simmer Burner: Maintains low, even heat for sauces, chocolate, or warming food.
• Fifth Burner: Cook multiple dishes at once with space for different pan sizes.
• Edge-to-Edge Cast-Iron Grates: Move pots and pans anywhere across the cooktop.
• 9.1K–12K BTU Multi-Purpose Burners: Medium to high heat options for everyday cooking.
• Dishwasher-Safe Cast-Iron Grates: Easy cleanup with a dishwasher-safe finish.
• Upswept SpillGuard™ Cooktop: Raised edges help contain spills.
• Sealed Burners: Prevent food from falling into the burner box.
• Wall Oven Compatible: Install above select Whirlpool® single wall ovens.
• ADA Compliant: Meets ADA Standards for Accessible Design.

Finish

Stainless Steel

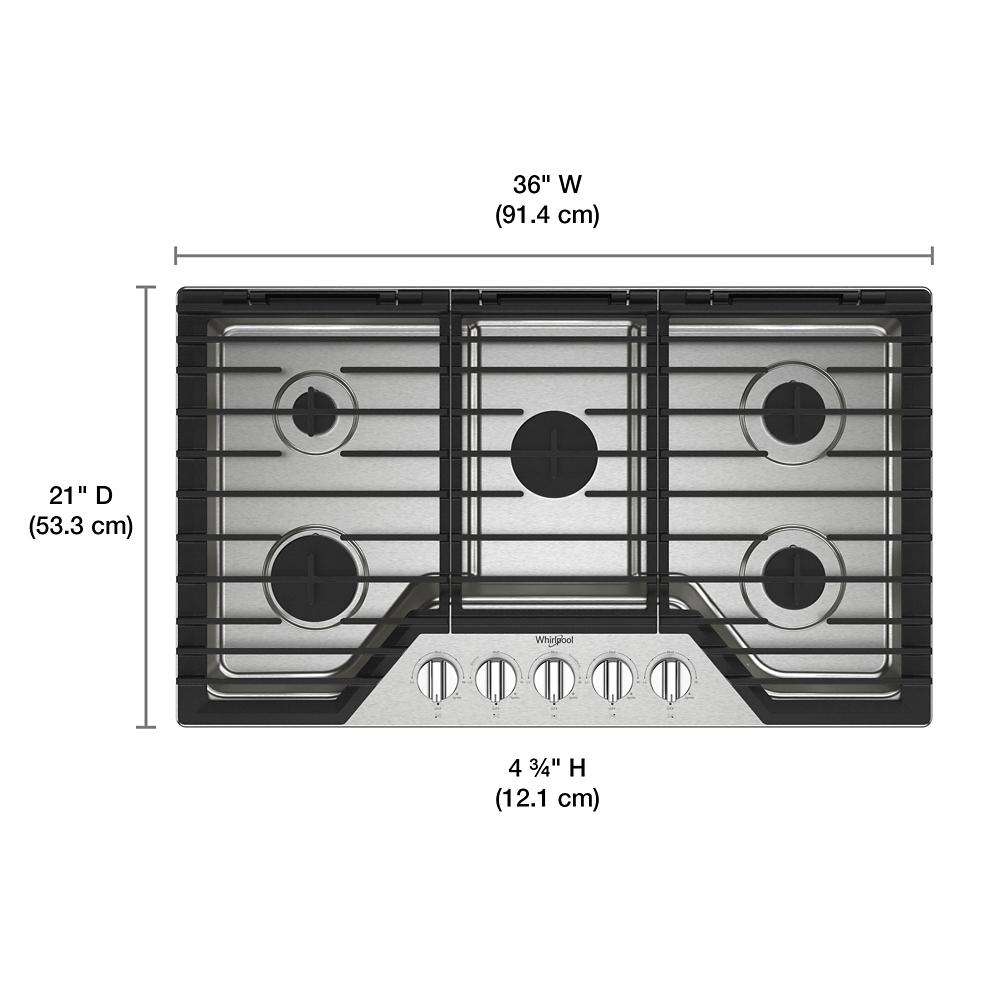

Dimensions

• Width: 36 in
• Height: 5.5625 in
• Depth: 21 in

Certifications

• ADA Compliant (Height and Side Reach)
• UL Listed
• Prop 65: California

Controls

• Control Location: Front
• Control Type: Knobs
• Infinite Heat Controls: No

Cooktop Details

• Cooktop Surface Color: Stainless Steel
• Ignition Type: Direct Spark Ignition
• Cooktop Configuration: All Burners
• LP Convertible: Yes (Kit Included)
• Power Outage Compatible: Yes
• Installs Over Built-In Oven: Yes

Burner Details

• Center Burner: 18,000 BTU (Power)
• Left Front Burner: 12,000 BTU
• Left Rear Burner: 5,000 BTU (Simmer)
• Right Front Burner: 9,100 BTU
• Right Rear Burner: 9,100 BTU
• Total Burners: 5

Grate Details

• Cast Iron Grates
• Continuous with Hinge
• Dishwasher Safe
• Matte Finish
• Number of Grates: 3

Cutout Dimensions

• Cutout Width: 35.25 in (Min: 33.875 in)
• Cutout Depth: 19–20 in

Carton & Weight

• Carton Width: 40.65 in
• Carton Height: 12.99 in
• Carton Depth: 24.96 in
• Net Weight: 66.7 lbs
• Gross Weight: 73.36 lbs

Electrical

• Power Cord Included: Yes

Smart Compatibility

Not Smart Enabled

Compatible Wall Ovens

WOES3027L, WOES3030L, WOES5027L, WOES5030L, WOES5930L, WOES7027P,
WOES7030P, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC0A, WOS51EC7,
WOS51EC7A, WOS52EM4, WOS52ES4M, WOS72EC0, WOS72EC7, WOS92EC7
